Mitsubishi Mini Split Remote Sg20a 436b Manual

When you’re dealing with a Mitsubishi mini split, the remote control is your command center. If you’ve ever struggled with your SG20A 436B remote, you’re not alone. This article provides an in-depth, step-by-step breakdown of the mitsubishi mini split remote sg20a 436b manual, packed with tips, features, and troubleshooting tactics to help you feel confident using it.

What Is the SG20A / 436B Remote and How Does It Differ from Other Models?

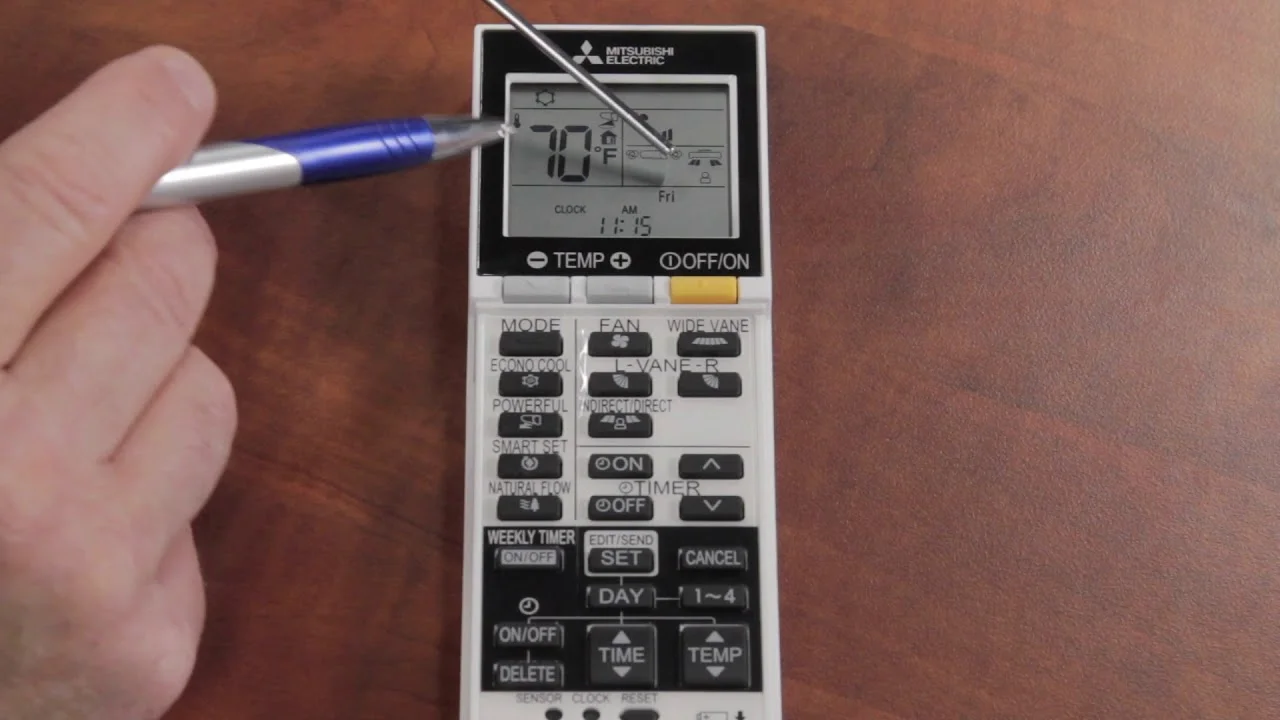

The mitsubishi mini split remote SG20A 436B is part of Mitsubishi Electric’s standard remote controllers for ductless wall-mounted air conditioners. Unlike newer remotes that feature touchscreens or Wi-Fi integration, the SG20A / 436B offers a clear display, tactile buttons, and reliable infrared control.

Here are its standout traits:

• Simplicity and reliability — easy to operate even for first-time users.
• Core functions — supports modes like COOL, DRY, FAN, AUTO, and optional HEAT on compatible units.
• Timer functionality — includes ON/OFF timers for scheduling.
• Accessible layout — large buttons make navigating settings a breeze.

This contrasts with feature-heavy models offering weekly scheduling or natural airflow modes, making the SG20A / 436B a solid choice for practicality and ease of use.

Step-by-Step Setup: Batteries, Time, and Mode Selection

Before diving into usage, you’ll want to configure your mitsubishi mini split remote sg20a 436b manual properly:

1. Insert Batteries: Open the front panel and use new AAA alkaline batteries, installing them with correct polarity. Press the RESET button afterward to ensure proper function.
2. Set the Clock (If Available): Some remotes allow setting the time with CLOCK, then adjusting with HR. and MIN. buttons. Others automate scheduling via ON/OFF timers
3. Select Operation Mode: Press the MODE button to cycle through modes—(I FEEL…), COOL, DRY, FAN—then press ON/OFF to start.
4. Adjust Temperature & Fan Speed: Use TOO COOL or TOO WARM to tweak temperature by about 2 °F per press. Fan speed cycles through Low, Med., High, and AUTO.

These steps ensure your remote and mini split system are in sync and ready for customized comfort.

Airflow Control: Fan Speed, Vane Direction, and the LONG Mode

The mitsubishi mini split remote sg20a 436b manual includes robust airflow customization features:

• Fan Speed Control: Press FAN repeatedly to shift between Low, Medium, High, and Auto modes
• Horizontal Airflow (VANE button): Switch between preset swing positions or let the vanes move automatically.
• Vertical Airflow (WIDE VANE button): Adjust vertical flow—it spans ~100° and offers swing or fixed directions.
• LONG Mode: Ideal for cooling distant areas—press LONG to increase fan speed and angle vanes for extended reach. Press again or any other control to cancel

Fine-tuning airflow ensures comfort reaches every corner of your room efficiently.

Timers and Auto-Restart: Managing Comfort Automatically

Essential for smart control:

ON/OFF Timers: Use the START (ON timer) and STOP (OFF timer) buttons, then set time with HR/MIN. Use them in tandem to program start and stop times.

Auto-Restart Function: After a power failure, the unit resumes previous mode, temperature, and fan speed automatically—unless you had it turned off with your remote before shutoff. Note: “I FEEL…” mode isn’t retained.

Whether you’re away or sleeping, these features deliver comfort when you need it—without daily effort.

Maintenance Tips & When to Seek Help

Following the mitsubishi mini split remote sg20a 436b manual also means taking care of the system itself:

Long-Term Disuse: Run FAN mode for 3–4 hours to dry out moisture, then turn off the breaker and remove batteries from the remote

Cleaning Filters:

• Air Filter: Remove and vacuum or rinse with lukewarm water, then dry in shade every ~2 weeks.
• Deodorizing Filter (gray sponge): Wash gently in lukewarm water (no hot water or scrubbers), dry, and reinstall. Replace annually or sooner if discolored.
• Air Cleaning Filter (white bellows): Replace every 4 months or when turning dark brown.

Troubleshooting: Before calling for service, check breaker status, temperature settings, filter cleanliness, and signal reception (avoid interference from inverter-type lighting).

Routine care keeps your mini split running smoothly and efficiently.

Common Sounds & Behaviors: Not Always Faults

Not everything unusual is a problem—some sounds and behaviors are normal:

• A delay of ~3 minutes before starting again? It’s a built-in protection mechanism.
• Clicking or cracking sounds? Typically the front panel expanding/contracting due to temperature change.
• Odors from the AC? The unit might be expelling smells absorbed from furniture or walls.
• Fan stopping during DRY mode? That’s normal—the unit pauses to prevent re-evaporation of moisture.
• Gurgling or flowing noise? Likely refrigerant or condensation moving inside.
• Vanes stopping mid-swing? It’s part of swing mechanism resetting, not a malfunction.
• Unit auto-resumes after power restoration? That’s the Auto-Restart in action.

Knowing these signals helps you avoid unnecessary concerns and keep the system in perspective.

Wrapping Up

In essence, the mitsubishi mini split remote sg20a 436b manual may sound like a mouthful, but understanding this remote unlocks the full potential of your system. From basic operation—powering on, changing modes, adjusting airflow, utilizing timers, and caring for your filter—to interpreting sounds and taking action only when necessary, you’re now armed with a deep, practical knowledge base.

Whether you’re new to mini splits or have been using them for years, these insights will help you control your environment with ease and efficiency.
